AI4S Insight | Gram-Scale High-Throughput Synthesis: Ou Shisheng Bridges the Gap from Discovery to Deliverable Material

With AI and high-throughput screening, medicine chemistry teams can identify dozens of mg-scale hit molecules daily. However, for a candidate to move to in vitro and in vivo evaluation, tangible material is essential: reproducible g-quantity samples with complete process records. The gram scale is the crucial point where molecular data becomes a physical substance. The challenge often faced between discovery and delivery isn't if a reaction can work, but how to reliably and traceably scale up a successful mg reaction into a g-scale process suitable for characterization and sample submission.

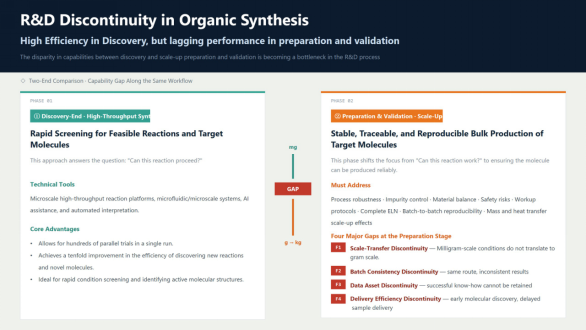

I. The Gram-Scale Threshold: Bridging the Materialization Gap Between Discovery and Delivery

Organic synthesis research has historically prioritized increasing the efficiency of target molecule screening and discovery. Through high-throughput reactions, microscale systems, and automated result interpretation, researchers have significantly improved the efficiency of the discovery phase. However, the verification and production phase presents distinct challenges. Here, the focus shifts from reaction feasibility to the ability to synthesize the target molecule in a stable, recordable, and scalable manner. This imbalance between the discovery and production phases creates a critical gap in pharmaceutical and fine chemical R&D:

Gap 1: Scale-Transfer Discontinuity — Milligram-scale conditions do not translate to gram scale

Core contradiction: Loss of process scalability
When optimal conditions developed for mg-scale reactions are directly scaled up to the gram scale, changes in heat transfer rate, mixing homogeneity, and mass transfer efficiency occur. These changes, governed by physical scaling laws, lead to unexpected variations in yield and purity. Success at the lab's microscale is merely a starting point and does not guarantee a smooth transition into a stably operable preparation process.

Gap 2: Batch Consistency Discontinuity — Inconsistent Outcomes from the Same Synthetic Route
Core contradiction: Manual operations introduce uncontrollable batch-to-batch variations.

The entire workflow for g-scale preparation involves manual dosing, transfer, extraction, and liquid separation. Operational errors at each stage are magnified by scaling effects, leading to significant discrepancies in product purity and spectral results across different operators and batches, even when using the identical synthetic route. This results in a loss of quantitative assurance for process stability and makes batch results unreliable for cross-batch comparison.

Gap 3: Data Asset Discontinuity — Successful Know-How Cannot Be Obtained
Core contradiction: Fragmented process data prevents conversion into reusable knowledge.

The complete process, from dosing and reaction to extraction, purification, and concentration, is orchestrated manually. Experimental records are scattered across paper notebooks, various software programs, and isolated files. When a batch performs well, identifying the key contributing factors becomes difficult, and for failed batches, root-cause analysis is challenging. Scale-up expertise remains highly dependent on individuals and cannot be transformed into reusable, modelable, or inheritable data assets.

Gap 4: Delivery Efficiency Discontinuity — Molecules Discovered Early, Samples Delivered Late
Core contradiction: The serial workflow of post-treatment becomes the production bottleneck.

When sufficient qualified samples are needed for NMR characterization, bioactivity evaluation, and customer submissions, downstream processing steps such as purification, drying, concentration, and weighing often limit the final delivery speed. Even after synthetic reactions are completed, bottlenecks in these downstream processes prevent prompt generation of qualified samples, extending the full cycle from "molecular discovery" to "sample delivery."

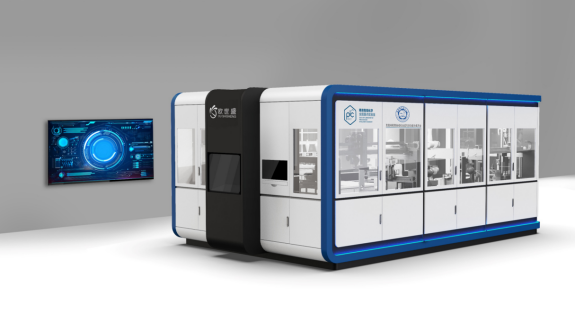

II. System-Level Solution: The Ou Shisheng Gram-Scale High-Throughput Synthesis Workstation Bridges Four Major Gaps

To address the four core discontinuities—scale transfer, batch consistency, data assets, and delivery efficiency—the Ou Shisheng Gram-Scale High-Throughput Synthesis Workstation employs a central design principle: a fully closed-loop process combined with multi-platform parallel operation. This resolves bottlenecks across the entire chain, from process scale-up to sample delivery, layer by layer. When synthesizing analogous derivatives, users can directly retrieve historical experimental protocols and recommended conditions, enabling true reuse and inheritance of process know-how.

1. Precise Dosing + Standardized Reaction Environment: Resolving Scale-Transfer Discontinuity for Cross-Scale Process Reproducibility

Solid raw materials are delivered via negative-pressure feeding, covering a dosing range from tens of milligrams to several grams, with built-in static elimination. Liquid raw materials are accurately dispensed by syringe pumps. All quantitative dosing actions are recorded with precise specifications, eliminating metering errors at the source.

The system is equipped with a high-throughput magnetic stirring module that supports independent temperature control. This ensures a uniform and controllable temperature field and stirring conditions for gram-scale reactions. It minimizes mass and heat transfer discrepancies induced by scale-up, reduces differences in mass transfer and mixing, and lays the foundation for cross-scale reproducibility. This achieves the goal of "one-time optimization, multi-batch reuse."

2. Programmed Closed Operation + Automated Purification: Resolving Batch Consistency Discontinuity and Eliminating Variations from Manual Operations

The core section of the instrument is housed within a glove box environment, supporting high/low temperatures, solid and liquid reagents, as well as anhydrous and oxygen-free conditions. The entire workflow of reaction, extraction, and material transfer is completed inside a programmed closed system, fully removing environmental fluctuations introduced by manual handling.

Post-processing steps including extraction, filtration, column chromatography, concentration, and drying run fully automatically. The separatory funnel enables automatic phase separation and transfer of aqueous and organic phases. The column purification system accommodates silica columns of multiple specifications with automatic sample loading. A temperature-controllable rotary evaporator and an automatic vacuum drying oven are integrated for downstream processing.

Standardized operations across all steps fundamentally mitigate yield and purity drift between batches, enabling high-frequency, stable, and reproducible g-scale preparation.

3. Automatic End-to-End Data Archiving: Resolving Data Asset Discontinuity and Accumulating Reusable Process Knowledge

To address scattered lab records and fragmented data, process parameters, operational actions, and experimental results for every procedure across the entire workflow are automatically collected and archived in real time by the software system. This effectively mitigates the prevalent issue of dispersed and fragmented experimental data.

The final product is documented in structured records, directly interfacing with characterization and sample submission workflows. Complete data lineage is established, covering process parameters, process logs, product quality, and characterization data for each batch. Successful processes can be retrieved and reused directly; abnormal batches allow for traceable root-cause identification. R&D know-how no longer relies on individual recollection and is truly transformed into inheritable and modelable data assets.

4. Parallel Post-Processing Matrix: Resolving Delivery Efficiency Discontinuity by Converting Serial Bottlenecks into Parallel Throughput

Breaking from the serial workflow of conventional synthetic scale-up, the system reconstructs end-to-end post-processing capacity through a parallel feeding mode. Unit operations, including solution preparation and reaction, extraction and filtration, drying and material scraping, column chromatography, concentration, weighing, and NMR pre-treatment, can be collaboratively scheduled. This enables simultaneous gram-scale preparation for multiple synthetic routes and batches.

Each process unit can be flexibly regulated, supporting non-linear workflows and loop-back operations. The workflow allows returning to intermediate stages for iterative process optimization, substantially shortening the timeline from reaction completion to the delivery of qualified samples.

III. From Automated Production Line to Data Infrastructure: Transforming Gram-Scale Processes into Modelable Assets

For AI4S, the g-scale workstation provides significant value by serving as the minimal data unit for modeling and the means to retain scale-up expertise. Even more structurally important is cross-scale consistency. The Ou Shisheng g-scale high-throughput automated synthesis workstation shares identical designs across five core modules with its milligram-scale counterpart: software and data architecture, precision dosing, temperature-controlled stirring reactions, separation and purification, and inline detection. Consequently, experimental protocols and process data can be cross-referenced between these different instrument models. This shared design means that conditions screened at the milligram scale during discovery and processes generated at the gram scale during preparation reside within the same structured data space. This allows optimization findings to be mutually validated and transferred between the two scales. Samples as Data: Gram-scale products offer sufficient tangible material for NMR, elemental analysis, and bioactivity evaluation. Coupled with traceable process records, this directly supports structure-activity relationship (SAR) studies and the active learning closed loop.

IV. Summary

The AI4S closed loop is fully achieved only when g-scale preparation becomes a callable, reproducible, and storable general infrastructure. Building upon the earlier mg-scale high-throughput workstation, Ou Shisheng’s new g-scale system for verification and preparation adds a critical component to the intelligent experimental infrastructure for materials science R&D. Engineered hardware boosts research productivity, while a full-stack intelligent ecosystem empowers scientists.

Appendix: Key Specifications of Gram-Scale Workstation
